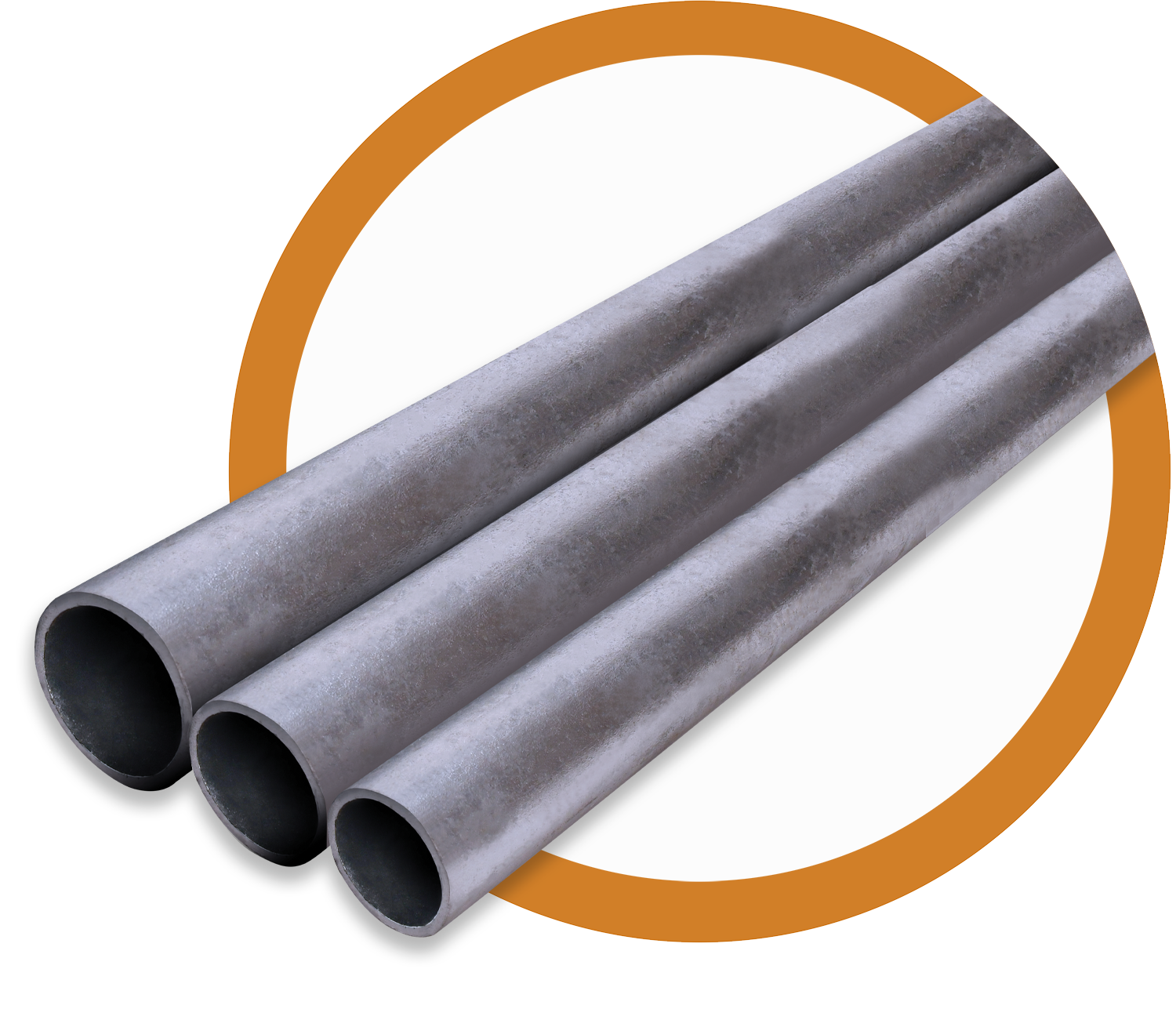

Structural Pipe
Our ASTM A 500 structural pipe is used in structural applications, general construction and telecommunication infrastructure. The pipe is manufactured for use in applications that demand greater strength and closer tolerances. The fully hot dip galvanized finish ensures maximum corrosion resistance and long term durability.
• Hot dip galvanized, per ASTM A123
• Schedule 40
• Grade A500B/C
• Minimum yield: 46 KSI
• Minimum tensile strength: 58 KSI
2” (2-3/8” outside diameter)
Wall thickness: .154”
Packaged in bundles of 61 pieces /span>
2-1/2” (2-7/8” outside diameter)
Wall thickness: .203”
Packaged in bundles of 37 pieces
3” (3-1/2” outside diameter)
Wall thickness: .237”
Packaged in bundles of 24 pieces
Wall thickness: .154”
Packaged in bundles of 61 pieces /span>
| Part # | Length | Weight | Bundle Weight |
|---|---|---|---|
| ft | lbs | lbs | |
|
GPE-238X72 |
6 | 22.0 | 1,340 |
|
GPE-238X84 |
7 | 25.6 | 1,563 |
|
GPE-238X96 |
8 | 29.3 | 1,786 |
|
GPE-238X120 |
10 | 36.5 | 2,226 |
|
GPE-238X126 |
10.5 | 38.3 | 2,336 |
|
GPE-238X150 |
12.5 | 45.7 | 2,791 |
|
GPE-238X174 |
14.5 | 53.1 | 3,237 |
|
GPE-238X252 |
21 | 76.9 | 4,688 |
2-1/2” (2-7/8” outside diameter)
Wall thickness: .203”
Packaged in bundles of 37 pieces
| Part # | Length | Weight | Bundle Weight |
|---|---|---|---|
| ft | lbs | lbs | |
|
GPE-278X96 |
8 | 46.4 | 1,717 |
|
GPE-278X120 |
10 | 58.0 | 2,146 |
|
GPE-278X126 |
10.5 | 60.9 | 2,253 |
|
GPE-278X150 |
12.5 | 72.5 | 2,682 |
|
GPE-278X174 |
14.5 | 84.1 | 3,111 |
|
GPE-278X252 |
21 | 121.8 | 4,507 |
3” (3-1/2” outside diameter)
Wall thickness: .237”
Packaged in bundles of 24 pieces
| Part # | Length | Weight | Bundle Weight |
|---|---|---|---|
| ft | lbs | lbs | |
|
GPE-312X72 |
6 | 45.5 | 1,092 |
|
GPE-312X96 |
8 | 60.6 | 1,455 |
|
GPE-312X126 |
10.5 | 79.6 | 1,910 |
|
GPE-312X150 |
12.5 | 94.8 | 2,274 |
|
GPE-312X162 |
13.5 | 102.3 | 2,455 |
|
GPE-312X174 |
14.5 | 109.1 | 2,637 |
|
GPE-312X252 |
21 | 159.2 | 3,820 |
